Quatrojos
Regular

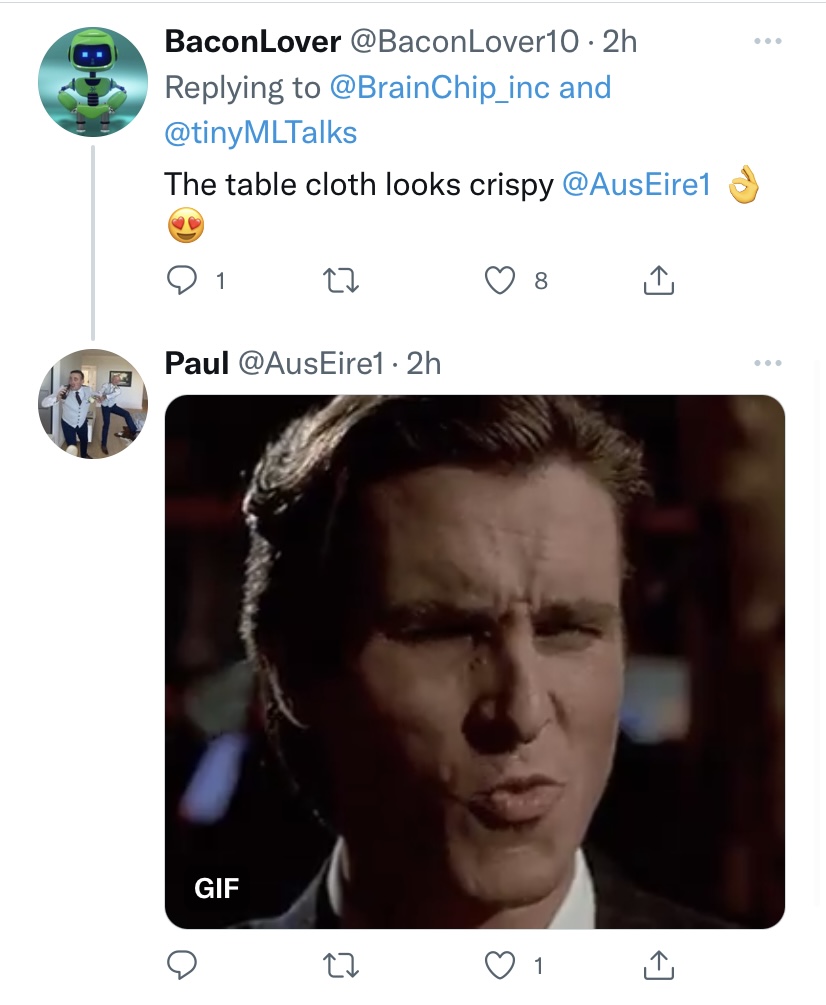

It's not level...I defy anyone to spot even the smallest crease on that tablecloth. It’s smoother than cream cheese on a bagel!
It's not level...I defy anyone to spot even the smallest crease on that tablecloth. It’s smoother than cream cheese on a bagel!
Parameter | Technical data |
---|---|
Package dimensions | 8-Pin LGA with metal 3.0 x 3.0 x 0.93 mm³ |
Operation range (full accuracy) | Pressure: 300...1100 hPa Humidity 0…100% Temperature: -40…85°C |
Supply voltage VDDIO Supply voltage VDD | 1.2 ... 3.6 V 1.71 ... 3.6 V |
Interface | I²C and SPI |
Average current consumption | 2.1 µA at 1 Hz humidity and temperature 3.1 µA at 1 Hz pressure and temperature 3.7 µA at 1 Hz humidity, pressure and temperature 90 µA at ULP mode for p/h/T & air quality 0.9 mA at LP mode for p/h/T & air quality 3.9 mA in standard gas scan mode (gas scan mode & scan rate can be optimized on applications with BME AI studio) |
Gas sensor F1 score for H₂S scanning Standard scan speed Electric charge for standard scan Response time (τ 33-63%) Sensor-to-sensor deviation Power consumption Output data processing | 0.92 10.8 s / scan 0.18 mAh (5 scans ~ 1 min) < 1 s (for new sensors) +/- 15% +/- 15 < 0.1 mA in ultra-low power mode Major direct outputs: Index for Air Quality (IAQ), bVOC-& CO₂-equivalents (ppm), Gas scan result (%) & many more (all listed in datasheet in Table 20: BSEC outputs) |
Humidity sensor Response time (τ0-63%) Accuracy tolerance Hysteresis | 8 s ± 3 % relative humidity ≤ 1.5 % relative humidity |
Pressure sensor RMS Noise Sensitivity Error Temperature coefficient offset | 0.12 Pa (equiv. to 1.7 cm) ± 0.25 % (equiv. to 1 m at 400 m height change) ±1.3 Pa/K (equiv. to ±10.9 cm at 1°C temperature change) |
I don't like the colour. Can we have a red one?It's not level...
Hi @TechGirl I'm sometimes a bit slow. Do you and others think this is our chip running the Bosch Sensortech?Rob Telson Likes this........I seem to remember Brainchip comparing our ability with VOC's to sense smells like a dogs nose

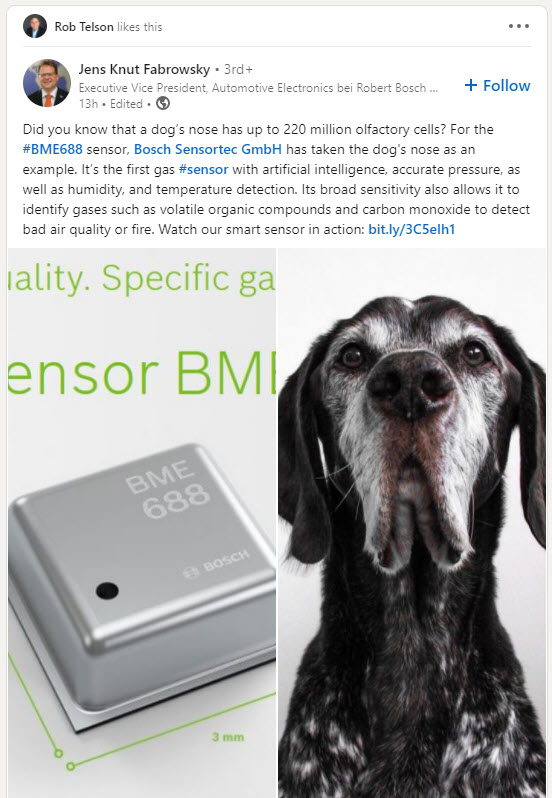

View attachment 3453
https://www.linkedin.com/posts/jens...=linkedin_share&utm_medium=member_desktop_web
Link to article
![]()
Gas sensor BME688
The BME688 is the first gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors. Read more herewww.bosch-sensortec.com
BME688
Environmental sensing with Artificial Intelligence
The BME688 is the first gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors. It is housed in a robust yet compact 3.0 x 3.0 x 0.9 mm³ package and especially developed for mobile & connected applications where size and low power consumption are critical requirements. The gas sensor can detect Volatile Organic Compounds (VOCs), volatile sulfur compounds (VSCs) and other gases such as carbon monoxide and hydrogen in the part per billion (ppb) range.
Additionally to all features of the BME680, the BME688 has a gas scanner function. In standard configuration, the presence of VSCs is being detected as indicator for e.g. bacteria growth. And the gas scanner can be customized with respect to sensitivity, selectivity, data rate and power consumption as well. The BME AI-Studio tool enables customers to train the BME688 gas scanner on their specific application, like in home appliances, IoT products or Smart Home.
![]()
Relative humidity barometric pressure
![]()
Excellent temperature stability
![]()
Humidity
![]()
Gas sensing
Technical data
RoHS compliant, halogen-free, MSL1
Parameter Technical data Package dimensions 8-Pin LGA with metal
3.0 x 3.0 x 0.93 mm³Operation range (full accuracy) Pressure: 300...1100 hPa
Humidity 0…100%
Temperature: -40…85°CSupply voltage VDDIO
Supply voltage VDD1.2 ... 3.6 V
1.71 ... 3.6 VInterface I²C and SPI Average current consumption 2.1 µA at 1 Hz humidity and temperature
3.1 µA at 1 Hz pressure and temperature
3.7 µA at 1 Hz humidity, pressure and temperature
90 µA at ULP mode for p/h/T & air quality
0.9 mA at LP mode for p/h/T & air quality
3.9 mA in standard gas scan mode
(gas scan mode & scan rate can be optimized on applications with BME AI studio)Gas sensor
F1 score for H₂S scanning
Standard scan speed
Electric charge for standard scan
Response time (τ 33-63%)
Sensor-to-sensor deviation
Power consumption
Output data processing
0.92
10.8 s / scan
0.18 mAh (5 scans ~ 1 min)
< 1 s (for new sensors)
+/- 15% +/- 15
< 0.1 mA in ultra-low power mode
Major direct outputs: Index for Air Quality (IAQ), bVOC-& CO₂-equivalents (ppm), Gas scan result (%) & many more (all listed in datasheet in Table 20: BSEC outputs)Humidity sensor
Response time (τ0-63%)
Accuracy tolerance
Hysteresis
8 s
± 3 % relative humidity
≤ 1.5 % relative humidityPressure sensor
RMS Noise
Sensitivity Error
Temperature coefficient offset
0.12 Pa (equiv. to 1.7 cm)
± 0.25 % (equiv. to 1 m at 400 m height change)
±1.3 Pa/K (equiv. to ±10.9 cm at 1°C temperature change)
Any one else immediately upon reading your post remember Anil Mankar’s 2021 Ai Field Day presentation where he mentioned that a couple of nodes of AKIDA IP could do “pressure, temperature, low cost things” on a very small device and give all the functionality of AKIDA where latency was not a primary issue. Sounds perfect for this Bosch device.Rob Telson Likes this........I seem to remember Brainchip comparing our ability with VOC's to sense smells like a dogs nose
View attachment 3453
https://www.linkedin.com/posts/jens...=linkedin_share&utm_medium=member_desktop_web
Link to article
![]()
Gas sensor BME688
The BME688 is the first gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors. Read more herewww.bosch-sensortec.com
BME688
Environmental sensing with Artificial Intelligence
The BME688 is the first gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors. It is housed in a robust yet compact 3.0 x 3.0 x 0.9 mm³ package and especially developed for mobile & connected applications where size and low power consumption are critical requirements. The gas sensor can detect Volatile Organic Compounds (VOCs), volatile sulfur compounds (VSCs) and other gases such as carbon monoxide and hydrogen in the part per billion (ppb) range.
Additionally to all features of the BME680, the BME688 has a gas scanner function. In standard configuration, the presence of VSCs is being detected as indicator for e.g. bacteria growth. And the gas scanner can be customized with respect to sensitivity, selectivity, data rate and power consumption as well. The BME AI-Studio tool enables customers to train the BME688 gas scanner on their specific application, like in home appliances, IoT products or Smart Home.
![]()
Relative humidity barometric pressure
![]()
Excellent temperature stability
![]()
Humidity
![]()
Gas sensing
Technical data
RoHS compliant, halogen-free, MSL1
Parameter Technical data Package dimensions 8-Pin LGA with metal
3.0 x 3.0 x 0.93 mm³Operation range (full accuracy) Pressure: 300...1100 hPa
Humidity 0…100%
Temperature: -40…85°CSupply voltage VDDIO
Supply voltage VDD1.2 ... 3.6 V
1.71 ... 3.6 VInterface I²C and SPI Average current consumption 2.1 µA at 1 Hz humidity and temperature
3.1 µA at 1 Hz pressure and temperature
3.7 µA at 1 Hz humidity, pressure and temperature
90 µA at ULP mode for p/h/T & air quality
0.9 mA at LP mode for p/h/T & air quality
3.9 mA in standard gas scan mode
(gas scan mode & scan rate can be optimized on applications with BME AI studio)Gas sensor
F1 score for H₂S scanning
Standard scan speed
Electric charge for standard scan
Response time (τ 33-63%)
Sensor-to-sensor deviation
Power consumption
Output data processing
0.92
10.8 s / scan
0.18 mAh (5 scans ~ 1 min)
< 1 s (for new sensors)
+/- 15% +/- 15
< 0.1 mA in ultra-low power mode
Major direct outputs: Index for Air Quality (IAQ), bVOC-& CO₂-equivalents (ppm), Gas scan result (%) & many more (all listed in datasheet in Table 20: BSEC outputs)Humidity sensor
Response time (τ0-63%)
Accuracy tolerance
Hysteresis
8 s
± 3 % relative humidity
≤ 1.5 % relative humidityPressure sensor
RMS Noise
Sensitivity Error
Temperature coefficient offset
0.12 Pa (equiv. to 1.7 cm)
± 0.25 % (equiv. to 1 m at 400 m height change)
±1.3 Pa/K (equiv. to ±10.9 cm at 1°C temperature change)
Agreed, I’m waiting on a small sum of money to come through as well so I know it’s selfish but I’d like prices to stay as they are for a bit longer also!I dislike getting paid fortnightly atm because I have to wait till next week before I buy more BRN shares. Don’t go up to quickly please![]()
Hi @TechGirl I'm sometimes a bit slow. Do you and others think this is our chip running the Bosch Sensortech?
Hi Dhm,
Bosch and Mercedes Benz have a well known partnership so it is suspected Bosch would be aware of Brainchip.
![]()
Future mobility: Daimler and Bosch join forces to work on fully automated, driverless system | Mercedes-Benz Group
Bosch and Daimler are joining forces to advance the development of fully automated and driverless driving.group.mercedes-benz.com
The gas sensor is stated to contain AI so I’m hopeful it contains Akida!
They would be a great partner and I’m sure we could help boost their bottom line!
Any one else immediately upon reading your post remember Anil Mankar’s 2021 Ai Field Day presentation where he mentioned that a couple of nodes of AKIDA IP could do “pressure, temperature, low cost things” on a very small device and give all the functionality of AKIDA where latency was not a primary issue. Sounds perfect for this Bosch device.
My opinion only DYOR
FF
AKIDA BALLISTA
There was such a big song and dance made about the lackluster ironing efforts made by the Brainchip team last time out. We felt it was appropriate to acknowledge the top job done this time out
They must have panicked and worried to transfer that ironed table cloth as well lolThere was such a big song and dance made about the lackluster ironing efforts made by the Brainchip team last time out. We felt it was appropriate to acknowledge the top job done this time out![]()
My opinion only
DYOR
Akida Ballista Baby
