Ubuntu installed, now the fun part.......Nah, I’ve just got giant hands
I’ll have a go at installing Ubuntu later today. I have a spare i3-6100 HP Prodesk lying around that I’ll use with the OS on an SSD.
Akida™ PCIe Board - What have you done & how did you do it?
- Thread starter JK200SX
- Start date
Careful. Someone might use the last pic to analyse your fingerprints and use an Interpol database to see if you are on file. Just because you are paranoid, it doesn't mean "they" are not out to get you.
In case you didn't know, Elon (Musk) has https://neuralink.com/ https://www.tesla.com/elon-musk which sounds like it is right up your alley.After receiving my board, I purchased a modest, refurbished PC for about $580 (USD) to run Ubuntu 20.04 as I typically work on Windows systems. I was able to get a customized Dell OptiPlex 7050 SFF (Small Form Factor) Desktop, which looks similar to BrainChip's shuttle PC.
The purchase provided the following specs:
So for the PC and the Akida PCIe board, I spent roughly ~1000, which is about 1/5th of the cost of the shuttle PC. Yes, unfortunately, I contributed to their lower revenues this past quarter.
- Intel Core i7-7700K, 4-Core, 4.2GHz
- 16GB (2x8) DDR4 RAM
- 256GB SATA SSD
- Nvidia Quadro K600 Low Profile, 1GB DDR3 VRAM
- Slim DVD+RW Drive
I spent a weekend installing/configuring Linux, installing development tools such as Python 3 (the version required for MetaTF), Visual Studio Code with associated add-ons, and several other Open Source apps I use under Windows.
I installed the BrainChip PCIe card, and it is useful to note that the mounting bracket and screw were useless to me, as the bracket was too tall for the small form-factor case. Instead, I just seated the card firmly. The card is low-profile enough that it is firmly seated without any play.
I provided my serial number on BrainChip's site to get access to the PDF with the driver installation instructions. I was able to install the drivers as documented and run the tests to ensure the card was working. To my surprise, the card has a tiny bright-blue LED light when powered on.
What I have yet to do before I consider the system complete:
The first project I have planned is a hobby project incorporating the use of the Emotiv Insight Brain-Computer Interface (BCI) which uses electroencephalography (EEG) to train and recognize commands that can be personalized for the individual using it. Several years ago, a Community SDK was provided (I will need to sift through all the forked branches) for developers to write custom interfaces to the device.
- Acquire a Web and set up a Web camera.
- Finishing a course or two for TensorFlow on Udemy.
- Play around with the existing MetaTF examples.
The initial goal is to figure out how to take that raw EEG data and determine how to provide that information to Akida's neural fabric to make use of its one-shot (or multi-shot) learning. The data collection application would consist of showing the user training the chip to read a command (which would be provided by a visual representation) while they concentrate on how they would perform it. Simple primitives like Stop, Go, Right, and Left would be sampled, then the user could "think" about these commands and the detected results from the training data would be displayed.
I should note that the Emotiv software itself provides a means of gathering EEG information and can play it back. Think of it like "Dragon Naturally Speaking", but instead of speech recognition, it would be recognizing brain activity. What I hope to accomplish is a proof of concept for Smart Edge devices that can be individually trained and controlled by a user on-demand.
A secondary, but future project would be to analyze the PCIe driver for which BrainChip provides the Linux source code and create a Windows PCIe driver. While it is fun to play with Linux once in a while, I'm mainly a Windows developer. It's my comfort zone for being more productive.
JDelekto
Regular
While I do find the applications for Nueralink to be very interesting and exciting, it's not necessarily as accessible to a hobbyist like me, and I'd prefer not to have to open my skull up to play around with it. LOL.
Rise from the ashes
Regular
Has the honeymoon period finished or you ladies, guys still doing stuff?
Techinvestor17
Regular
Yea doing heaps mate, look at it everyday
D
Deleted member 118
Guest
Only board I got is a
JDelekto
Regular
I still have plans to do stuff before the end of this year. I finally have a complete kit together (SFF PC, PCIe card, Camera, and Emotiv device). The only thing I'm waiting for is the 2nd half of December to take my PTO time.
Work has gotten in the way of my independent learning and hobby time after the company I work for was acquired. It's almost like I'm working two jobs now.
Work has gotten in the way of my independent learning and hobby time after the company I work for was acquired. It's almost like I'm working two jobs now.
JDelekto
Regular

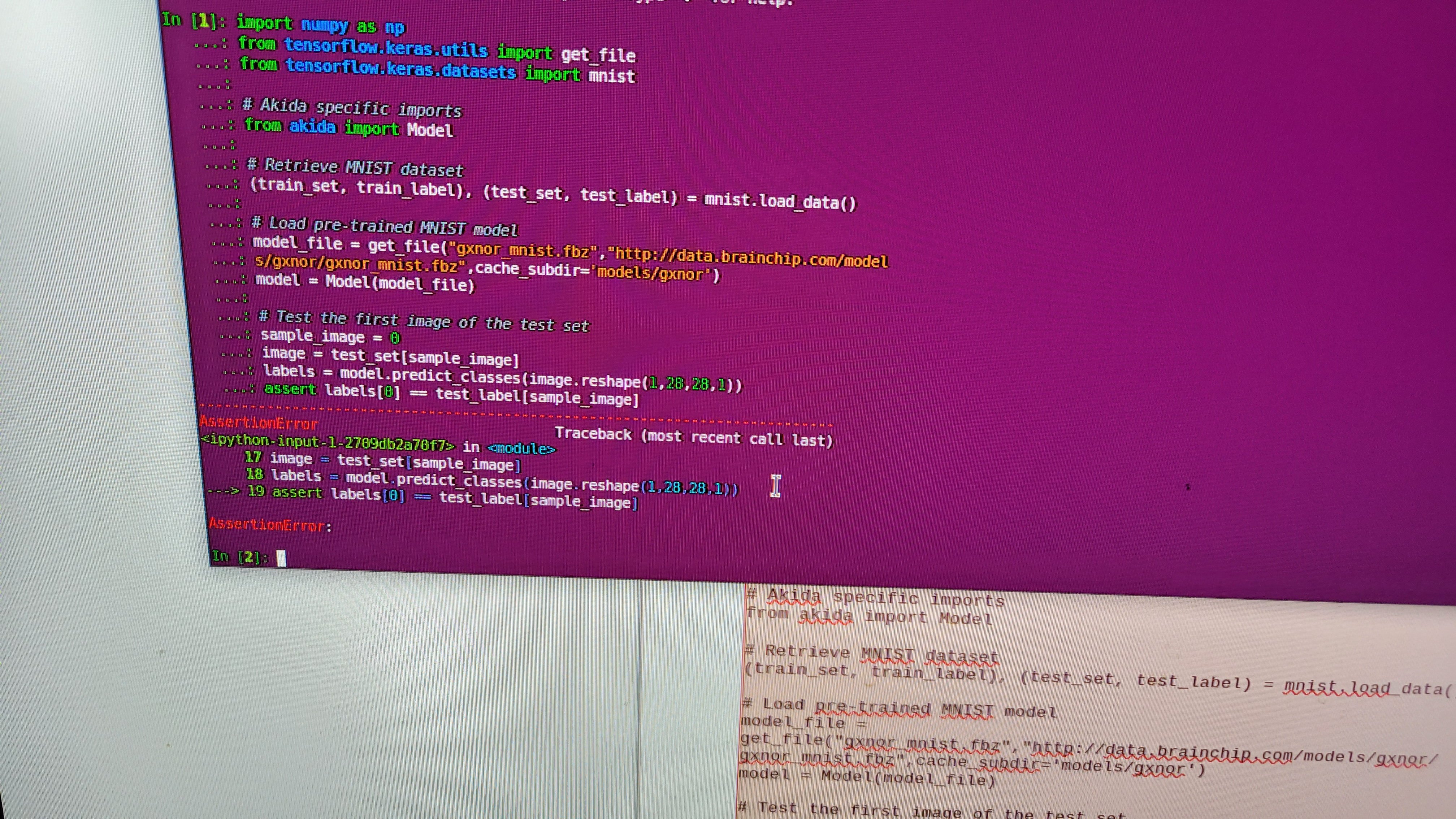

The assertion is failing because it expects the value of label[0] to be equal to the value of test_label[sample_image].
The test_label[] is populated from the MNIST data set, and sample_image is initialized to zero, so the first element in the label array returned from the model.predict_classes() function is not matching the first element in the test_labels.
Before the assert, you can add a print(labels[0]) on one line, and a print(test_label[sample_image]) below that to see their values, it may give some clue as to which one is problematic.
Thanks JD.
I'll look further into that, I noticed the installs and downloads ran and just made an assumption it would be okay. appreciated
I come from a web background (php, js) with limited C and arduino development experience so a fair bit to learn with Python. Hopefully it's not to much of a slow burn.
I'll look further into that, I noticed the installs and downloads ran and just made an assumption it would be okay. appreciated
I come from a web background (php, js) with limited C and arduino development experience so a fair bit to learn with Python. Hopefully it's not to much of a slow burn.
ChatGPT3 is good value; very useful for work. Next ititeration will be interesting.
Time to sit down and see if I can get this code to run.
perceptron
Regular
Hi.
I have been in contact with sales about purchasing an ADK1000 board. I am trying to find out if the board can be delivered to a PO Box in Australia. Sales have told me it can be divered overseas and nothing more. Did anyone have theirs arrive in this way?
Cheers.
perceptron
I don't see why a PO Box wouldn't work. The package size is small.Mine was ordered via a friend who purchased it through a PC hardware shop in Australia as a special buy so unfortunately can not provide further details on shipping.

Attachments
Last edited:
perceptron
Regular
That's unfortunate... I bought mine when they were initially made available and was able to have it shipped to a residential address in Australia. I wonder why they've stopped allowing that
I will be chipping away at a project involving the Phrophsee GenX320 event-based camera and an Akida1000 PCIe card for those interested.
The goal is to improve the understanding of neuromorphic processing and event-based cameras for myself and anyone else who decides to follow. I will attempt to use as little technical speak as possible. Hopefully, posting here will add some accountability for me to get to the other end of the project. I will be covering as many aspects as possible of the process in detail, including:
A conventional frame-based camera captures light at periodic intervals via light-sensitive photoreceptors to produce a frame more commonly known as an image. The pixels sampled within a current frame are memoryless meaning the frame has no relation to past or future frame samples. For this reason, each frame must be re-processed regardless of whether the scene is static and contains redundant information. As the resolution of an image increases so does the pixel count as shown in Figure 1. The more pixels within a frame, in turn, will generate more data to be processed; common resolutions used today include:
Another consideration for a Frame-based camera is Frames Per Second (FPS), shown in Figure 2, which relates to the speed at which a processor requests new frames. Simplistically, it is possible to increase the FPS in an attempt to replicate a continuous stream of frames, but once coupled with the specific resolution of a camera, the data size of a frame can rapidly increase. Therefore, the increasing volume of data will need to be processed, which requires increased processing speed, power consumption, and heat dissipation to avoid potential processing delays, potentially leading to a system no longer fit for purpose [2].
Like a frame-based camera photoreceptor, event-based photoreceptors generate a voltage signal when exposed to light [3], similar to how a solar cell produces a voltage. While the operation of a frame and event-based camera may sound the same, the fundamental difference between the two technologies is that a frame-based camera will be polled periodically by a processor with all pixels providing current state information regardless of change and the information processed synchronously. On the other hand, the event-based camera will interrupt the processor only when a change in the light intensity of an individual pixel triggers an event. The ability to interrupt and transmit only dynamic scene changes from a triggered event reduces the processing data 10 to 1000 times compared to conventional frame-based cameras, thus reducing the processor's power consumption [4][6]. The interrupt process enables event-based cameras to achieve sub-1-microsecond event processing asynchronously and precisely, capturing and representing dynamic changes in the scene over time. The event-based camera characteristics result in a continuous stream of information processed in real-time, in stark contrast to frame-based cameras, as illustrated in Figure 3 [5].
Figure 3 - The fundamental difference between frame-based and event-based camera outputs is the ability of event-based cameras to produce a continuous data stream of dynamic scene changes compared to a frame-based camera, which captures a complete static frame [5].
Frame and event-based camera comparison based on 2020 information in Table 1 provide a broad overview between camera types and to further highlight the benefits of event-based cameras when processing limitations and power efficiency are a crucial requirement, such as those found on edge devices or limited internet connectivity [7].
Table 1 - General comparison of two conventional frame-based cameras against an event-based camera.
In conclusion, frame-based cameras can capture a complete scene within a single frame that including static and dynamic information. The trade-off is high data processing, higher power consumption, and the potential for critical data not captured between frames. On the other hand, event-based cameras employ an interrupt process driven by an individual pixel, thus reducing data processing and allowing for a continuous stream of dynamic changes within a scene at a high temporal resolution. As shown in Figure 4, the trade-off for lower power and a continuous data stream is that event-based cameras only detect the dynamic changes in the scene based on a light intensity change with great accuracy and speed; meanwhile, frame-based cameras capture both static and dynamic information in full detail.
Figure 4 Difference between a frame and event-based camera image.
The event-based camera characteristics position the technology as a promising tool for applications demanding real-time precision in dynamic environments, including robotics, autonomous vehicles, vibration monitoring, and surveillance. One would envisage that both frame and event-based cameras will have individual use cases with more advanced systems relying on both cameras working in conjunction with each other to reduce data processing and power consumption while maintaining static and dynamic information within a scene.
Next section will cover a technical dive into the operation of a Prophesee event-based GenX320 Camera to understand the inner workings of the hardware and configuration of the camera.
References
[1] image-14.png (562×427) (photometrics.com)
[2] Canon Camera sensors explained.
[3] PROPHESEE Metavision (1:05)
[4] PROPHESEE Metavision (7:04)
[5] Sony | Event-based Vision Sensor (EVS) (1:11)
[6] Event-Based Metavision® Sensor GENX320 | PROPHESEE
[7] A Toolbox for Easily Calibrating Omnidirectional Cameras (uzh.ch)
The goal is to improve the understanding of neuromorphic processing and event-based cameras for myself and anyone else who decides to follow. I will attempt to use as little technical speak as possible. Hopefully, posting here will add some accountability for me to get to the other end of the project. I will be covering as many aspects as possible of the process in detail, including:
- Why do we use event-based cameras compared to frame-based
- Technical dive into a Prophesee event-based GenX320 Camera
- Setup and interfacing an X320 camera with a microprocessor for data capture
- Using Phrophesee Metavision software and processing data
- Review of neuromorphic processing
- Installation and setup of an Akida1000 PCIe card
- Simulation of SNN data processing using MetaTF
- Processing of data on an Akida1000 PCIe card
- Comparison of conventional and SNN neuromorphic processing time and power consumption
- Real-world applications for event-based cameras
Event-Based Cameras, Neuromorphic Processing and Application.
What is the fundamental difference between a frame-based and event-based camera?
For a foundational understanding of a conventional frame-based camera and the more recent event-based camera, this section assumes that a photoreceptor is interchangeable with the term pixel and maintains a 1-to-1 ratio to the image's resolution.A conventional frame-based camera captures light at periodic intervals via light-sensitive photoreceptors to produce a frame more commonly known as an image. The pixels sampled within a current frame are memoryless meaning the frame has no relation to past or future frame samples. For this reason, each frame must be re-processed regardless of whether the scene is static and contains redundant information. As the resolution of an image increases so does the pixel count as shown in Figure 1. The more pixels within a frame, in turn, will generate more data to be processed; common resolutions used today include:
- 1280x720 pixels / HD (High Definition),
- 1920x1080 pixels / FHD (Full HD),
- 2560 x 1440 pixels / QHD (Quad HD), and
- 3840x2160 pixels / 4K UHD (Ultra HD).
Another consideration for a Frame-based camera is Frames Per Second (FPS), shown in Figure 2, which relates to the speed at which a processor requests new frames. Simplistically, it is possible to increase the FPS in an attempt to replicate a continuous stream of frames, but once coupled with the specific resolution of a camera, the data size of a frame can rapidly increase. Therefore, the increasing volume of data will need to be processed, which requires increased processing speed, power consumption, and heat dissipation to avoid potential processing delays, potentially leading to a system no longer fit for purpose [2].
|
Figure 1 Demonstrates the increase in pixel count as camera resolution increases. |
Figure 2 demonstrates the potential for missed information based on FPS [1]. |
Like a frame-based camera photoreceptor, event-based photoreceptors generate a voltage signal when exposed to light [3], similar to how a solar cell produces a voltage. While the operation of a frame and event-based camera may sound the same, the fundamental difference between the two technologies is that a frame-based camera will be polled periodically by a processor with all pixels providing current state information regardless of change and the information processed synchronously. On the other hand, the event-based camera will interrupt the processor only when a change in the light intensity of an individual pixel triggers an event. The ability to interrupt and transmit only dynamic scene changes from a triggered event reduces the processing data 10 to 1000 times compared to conventional frame-based cameras, thus reducing the processor's power consumption [4][6]. The interrupt process enables event-based cameras to achieve sub-1-microsecond event processing asynchronously and precisely, capturing and representing dynamic changes in the scene over time. The event-based camera characteristics result in a continuous stream of information processed in real-time, in stark contrast to frame-based cameras, as illustrated in Figure 3 [5].
Frame and event-based camera comparison based on 2020 information in Table 1 provide a broad overview between camera types and to further highlight the benefits of event-based cameras when processing limitations and power efficiency are a crucial requirement, such as those found on edge devices or limited internet connectivity [7].
Table 1 - General comparison of two conventional frame-based cameras against an event-based camera.
| High-speed camera | Standard camera | Event Camera | |
| Max fps or measurement rate | Up to 1MHz | 100-1,000 fps | 1MHz |
| Resolution at max fps | 64x16 pixels | >1Mpxl | >1Mpxl |
| Bits per pixels (event) | 12 bits | 8-10 per pixel | ~40 bits/event |
| Weight | 6.2 Kg | 30 g | 30 g |
| Data rate | 1.5 GB/s | 32MB/s | ~1MB/s on average |
| Mean power consumption | 150 W | 1 W | 1 mW |
In conclusion, frame-based cameras can capture a complete scene within a single frame that including static and dynamic information. The trade-off is high data processing, higher power consumption, and the potential for critical data not captured between frames. On the other hand, event-based cameras employ an interrupt process driven by an individual pixel, thus reducing data processing and allowing for a continuous stream of dynamic changes within a scene at a high temporal resolution. As shown in Figure 4, the trade-off for lower power and a continuous data stream is that event-based cameras only detect the dynamic changes in the scene based on a light intensity change with great accuracy and speed; meanwhile, frame-based cameras capture both static and dynamic information in full detail.
Figure 4 Difference between a frame and event-based camera image.
The event-based camera characteristics position the technology as a promising tool for applications demanding real-time precision in dynamic environments, including robotics, autonomous vehicles, vibration monitoring, and surveillance. One would envisage that both frame and event-based cameras will have individual use cases with more advanced systems relying on both cameras working in conjunction with each other to reduce data processing and power consumption while maintaining static and dynamic information within a scene.
Next section will cover a technical dive into the operation of a Prophesee event-based GenX320 Camera to understand the inner workings of the hardware and configuration of the camera.
References
[1] image-14.png (562×427) (photometrics.com)
[2] Canon Camera sensors explained.
[3] PROPHESEE Metavision (1:05)
[4] PROPHESEE Metavision (7:04)
[5] Sony | Event-based Vision Sensor (EVS) (1:11)
[6] Event-Based Metavision® Sensor GENX320 | PROPHESEE
[7] A Toolbox for Easily Calibrating Omnidirectional Cameras (uzh.ch)
Attachments
Last edited:
Thanks @wasMADX, I was a little worried in posting it to begin with; first time doing a write-up like this.
I'll get moving first and see if everyone likes it. Think of it as a soft launch.
